Marker Quad

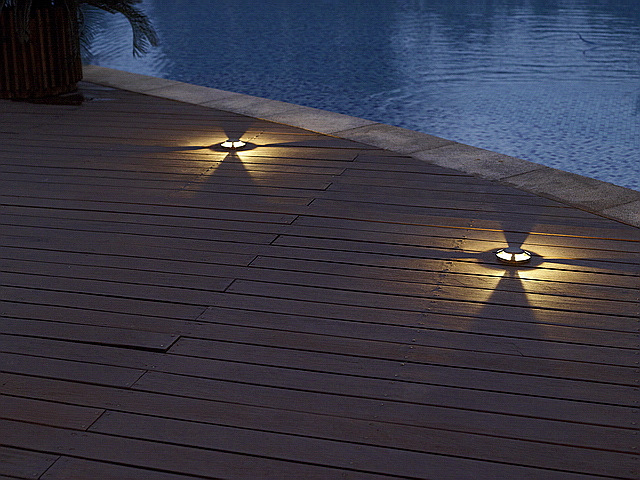

The construction principle of these luminaires provides a solution for numerous lighting applications on large-area ground surfaces. The significantly lower installation costs compared to recessed luminaires, and the different installation variations, reduce the overall installation costs and offer a high degree of flexibility. The luminaires are simply fixed to the substrate with a mounting plate. Just one core hole needs to be drilled by the customer for the cable to pass through.

 The luminaires can thus be installed in loose substrates such as sand or gravel.

Depending on the substrate‘s load-bearing capability, the luminaires can support a load of up to 500 kg and withstand vehicles with pneumatic tyres. The luminaires must not be used in areas exposed to horizontal loads caused by braking, accelerating and changes of direction.





Download Product Leaflet >
Category:

Description

Installation depth 70 · 150 mm
Pressure load 500 kg
Protection class IP 67

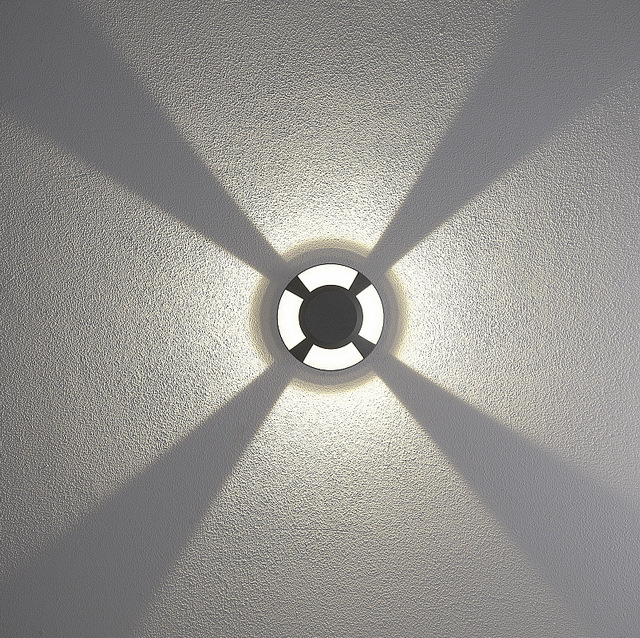

Comes in A-Symmetrical Beam Angle of 4×40 Degrees

Lumens from 425lm

Wattage from 7 W
Protection class  IP 67 · Safety class I
Cover frames and luminaire housings made of aluminum
Recessed housing made of aluminium
Safety glass, transparent
Reflector made of pure anodised aluminium
3 m connecting cable 2 x 1m

Voltage 220 VAC (Optional)
LED colour temperature optionally 4000 K or 3000 K
4000 K – Article number
3000 K – Article number
