Linea M

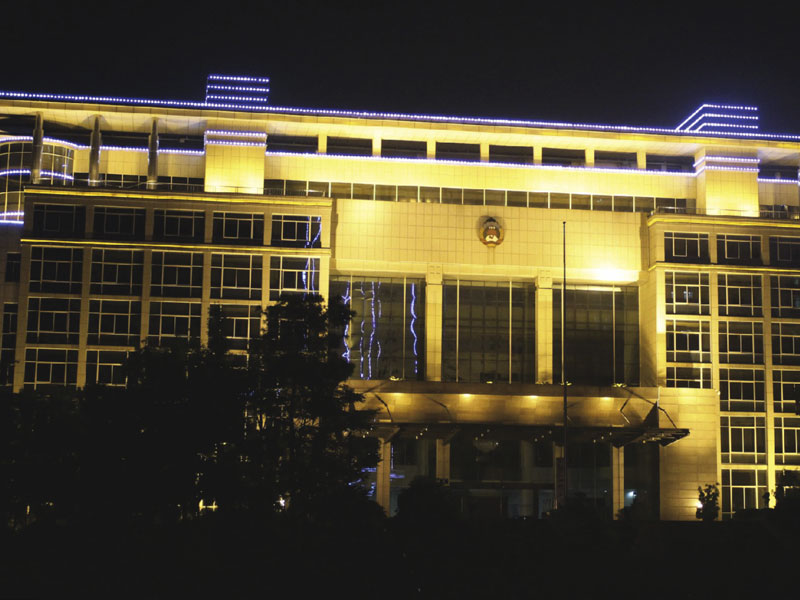

The Linea fixture delivers high power performance lighting for interior & exterior wall washing applications. The Linea add linear washing brilliant led performance to new installation are can drastically enhance an existing structure as a fluorescent replacement wall wash, retrofit system . Linea is best value for money .

Linea designed for seamless continuous mounting .Optimal performance can be achieved for various mounting heights.

A maintenance free fixture with long life span and low cost & easy installation  .





Download Product Leaflet >
Categories: ,

Description

Installation type Surface Mount

Protection class IP 65

Comes in Beam Angle of
Symmetric 15º,25º,45º,60º
A-Symmetric 10ºx60º,25ºx50º

Beam Type A Symmetric

Lumens 1800~ 3800lm

CRI 80+

Wattage 18,24,36
Protection class  IP 65 · Safety class I
Phospho-chromatised and polyester powder coated Extruded aluminium body

Voltage 24VDC / 220 VAC (Optional)

Environmental Temperature      – 20℃ to 50℃

Environmental Humidity               0%~95%

LED colour temperature optionally ,
Article number + 2700 K
Article number + 3000 K
Article number + 4000 K

RGB (Optional) + DMX

Body Color  Textured RAL 7042



.

.











.



.





.
