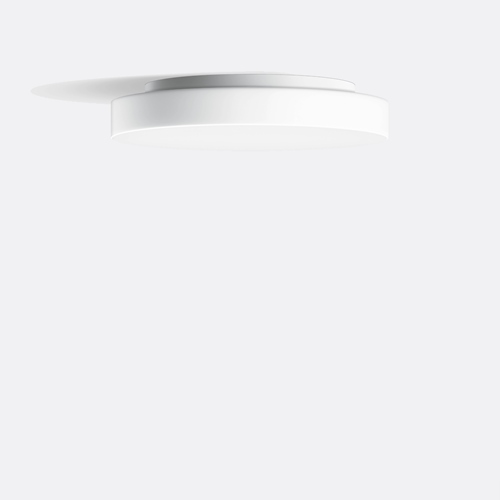

Esfera Classic

ESFERA ceiling and wall luminaires – luminaires with satin matt hand-blown opal glass for universal use. Compact, economical and versatile — of course with durable LED technology. For all applications that require reliable technology and cost efficiency.

These luminaires are available optionally: for On / Off operation, DALI controllable, with motion sensor or with various group module functions – in this case, one luminaire with a motion sensor and group module (master) will control several other luminaires with a group module (slave). The optional selection between two output levels in one luminaire diameter allows you to directly influence the number of luminaires, the light effect and the interior design as early as the planning stage.



Download Product Leaflet >







Category:

Description

Installation type Surface Mounted

Protection class IP 30

Dim-able built-in (optional) – Article number + DIM

Comes in Beam Angle of   170° Degrees

Lumens 1100~1850 lm

CRI 80+,90+ (optional)

Wattage 12,16,24 W
Protection class  IP 20 · Safety class II
Cover frames and luminaire housings made of Aluminum

Voltage 150/240 VAC

Environmental Temperature      – 20℃ to 55℃

Environmental Humidity               0%~95%
LED colour temperature optionally 3000 K,4000 K & 6000 K

3000 K – Article number
4000 K – Article number
6000 K – Article number

Trim Color optionally Plain white / Steel









.
