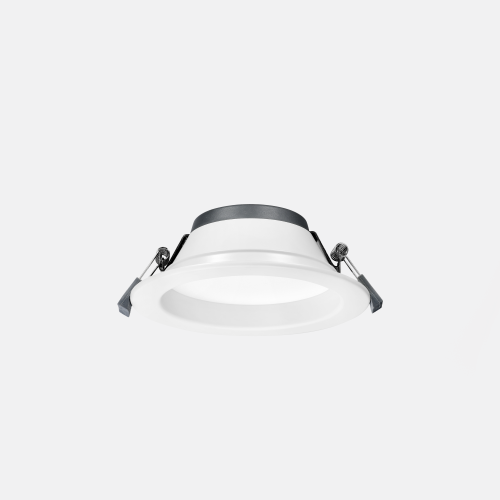

Betel 14

The Betel series SMD based downlights are the ideal solution for traditional 1 or 2-lamp CFL downlights. Designed for quick installation, the downlights easily install into most 4-inch to 10-inch CFL rough-in frames bringing a fresh look to the space. Concerns about maintenance or compatibility issues with existing ballasts are eliminated with 50,000 hours life rating and a new power supply.

The betel is also available in CCT Changeable Switch & Dim-able Versions .



Perfect for Hotels, Restaurants, Homes, Offices , Cafes , Lobbies , Auditoriums .





Download Product Leaflet >
Category:

Description

Installation type Surface Recessed

Protection class IP 20

Dim-able built-in (optional) – Article number + DIM

Comes in Beam Angle of
FROSTED 90° Degrees

Lumens 1190~1230 lm

CRI 80 | 90 (optional)

Wattage 14 W
Protection class  IP 20 · Safety class II
Cover frames and luminaire housings made of Plastic & Aluminum

Voltage 220/240 VAC

Environmental Temperature      – 20℃ to 50℃

Environmental Humidity               0%~95%
LED colour temperature optionally 3000 K,4000 K & 6000 K

3000 K – Article number
4000 K – Article number
6000 K – Article number

Body Color White

Dimensions type D143 x H57mm Aperture Ø 117~127 mm







.
