Astra Midi

A compact recessed exterior downlight with a round or square front frame design. Options of stainless steel or powder coating aluminium front frame. The luminaires are designed for use in interior and exterior applications in shopping mall and public areas as architectural ceiling downlight. Main characteristics are low glare and limited maintenance concept.

The luminaire rated as CLASS I with remote driver. Colour temperature 2700K,3000K and 4000K, LED CRI >80 and life time 50,000 Hours.

Low copper content die-cast aluminium housing ensuring high corrosion resistance. Auminium frame thickness 6mm. with grade 304 stainless steel front frame. Stainless steel fasteners in grade 316. Power is provided to the luminaire through  a single PG9 water tight cable gland. Durable silicone rubber gasket and clear toughened glass



Perfect for Hotels, Restaurants, Homes, Product Displays , Cafes , Lobbies , Auditoriums .





Download Product Leaflet >
Category:

Description

Installation type Ceiling Recessed

Protection class IP 65

Dim-able built-in (optional) – Article number + DIM

Comes in Beam Angle of   33°,45°,60° Degrees

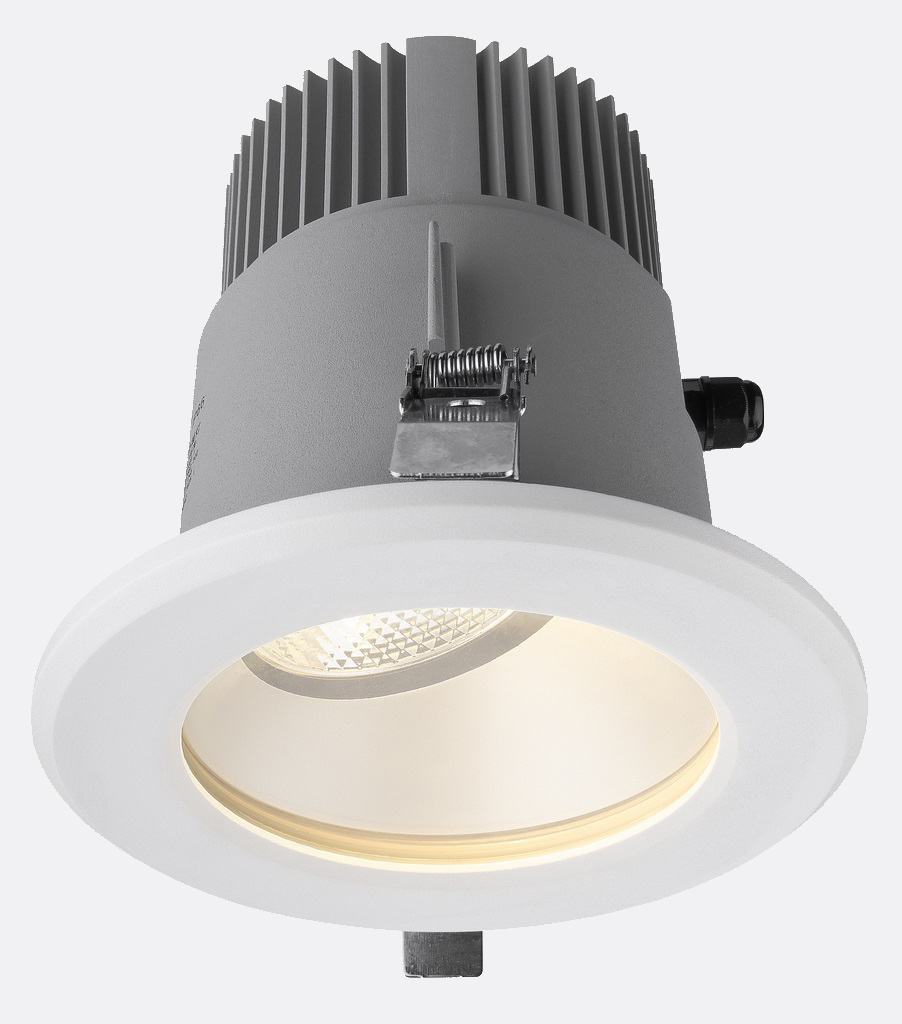

Available Fixed Tilt version  18° Degrees   ( Article – TILT )

Lumens 2400~3600 lm

CRI 80

Wattage 30W/36/40W
Protection class  IP 56 · Safety class I
Cover frames and luminaire housings made of Aluminum

Voltage 220/240 VAC

Environmental Temperature      – 20℃ to 55℃

Environmental Humidity               0%~95%
LED colour temperature optionally 2700 3000 K,4000 K & 6000 K

2700 K – Article number

3000 K – Article number
4000 K – Article number
6000 K – Article number

Body Color optionally Plain white / Black













.
